Input/Output Modules
.jpg&height=156)
Below is a list of the NTE line of Input/Output ModulesClick on the Series for Data Sheets

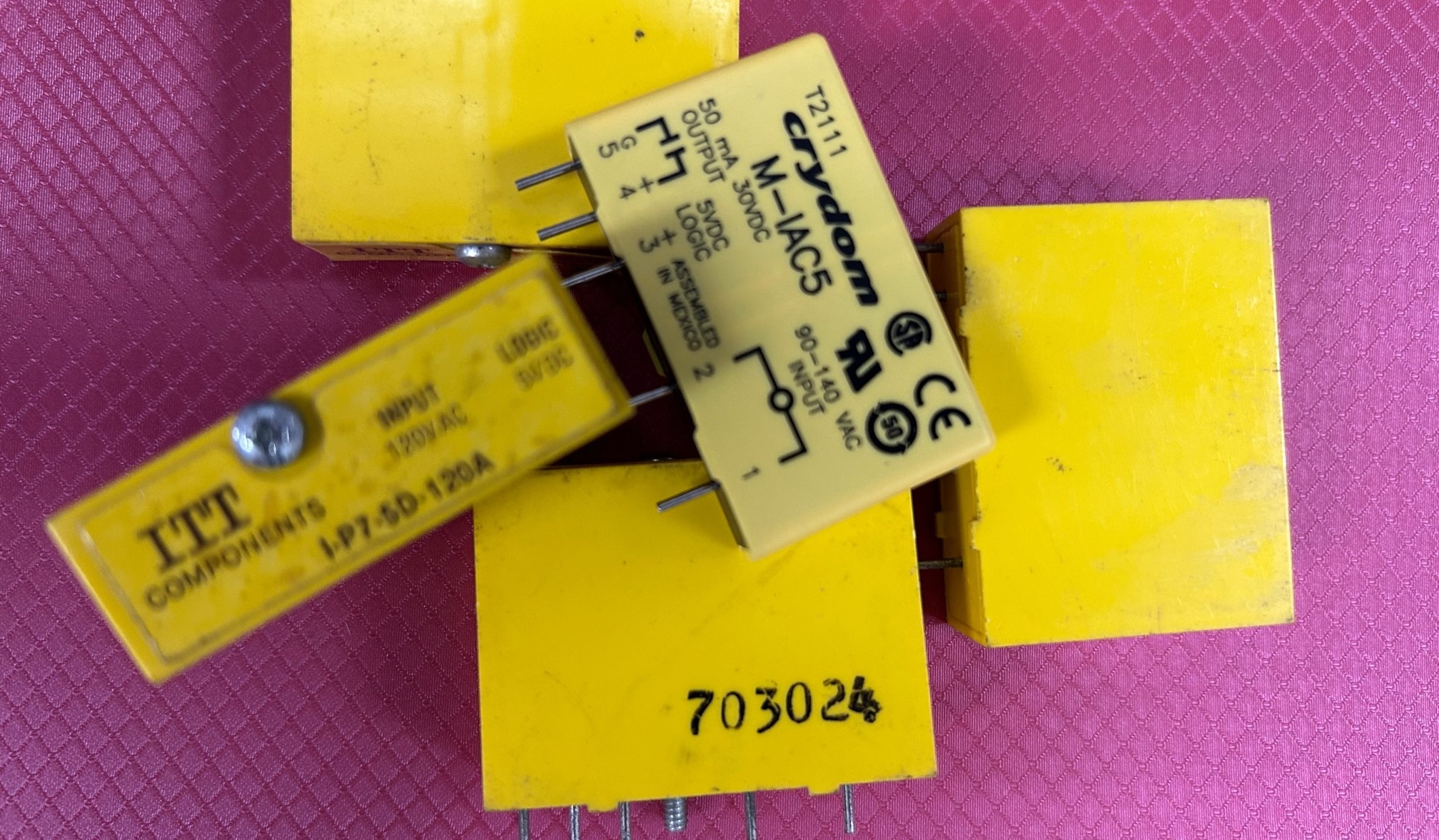

Input/Output Modules
Output Current:50mAInput Ratings:120, 240VAC (AC Types)5, 15, 24VDC (DC Types)Output Voltage:30VDC (AC Types)2.75V to 30VDC (DC Types)Contact Arrangement: Dimensions: H x W x L
1.250 (31.75) x 1.700 (43.2) x .600 (15.24)
Features:•Industry Standard Packaging•AC & DC Types•Industry Standard Color Code (AC = Yellow, DC= White)•4KV Optical Isolation•Plugs into Standard I/O Module Mounting Board
Output Current:50mAInput Ratings:120, 240VAC (AC Types)5, 15, 24VDC (DC Types)Output Voltage:30VDC (AC Types)3.5V to 30VDC (DC Types)Contact Arrangement: Dimensions: H x W x L
1.250 (31.75) x 1.700 (43.2) x .400 (10.16)
Features:•Slimline Packaging•AC & DC Types•Industry Standard Color Code (AC = Yellow, DC= White)•4KV Optical Isolation•Plugs into Standard I/O Module Mounting Board
Output Current:3.5A (AC Types)3A (DC Types)Input Ratings:5, 15, 24VDCOutput Voltage:12V to 280VAC (AC Types)3V to 60VDC (DC Types)Contact Arrangement: Dimensions: H x W x L
1.250 (31.75) x 1.700 (43.2) x .600 (15.24)
Features:•Industry Standard Packaging•AC & DC Types•Industry Standard Color Code (AC = Black, DC= Red)•4KV Optical Isolation•Plugs into Standard I/O Module Mounting Board
Output Current:3AInput Ratings:5, 15, 24VDCOutput Voltage:12V to 280VAC (AC Types)3V to 60VDC (DC Types)Contact Arrangement: Dimensions: H x W x L
1.250 (31.75) x 1.700 (43.2) x .400 (10.16)
Features:•Slimline Packaging•AC & DC Types•Industry Standard Color Code (AC = Black, DC= Red)•4KV Optical Isolation•Plugs into Standard I/O Module Mounting Board
